Left Elevator Continued..4th day

Laid out the lines on the aluminum cut from the left elevator to make the trim tab from.
Cut out rough shape using hand shears.





Installed spar skeleton into skins and started all the prep work that needed to be finished before riveting. Finished drilling and dimpling all holes into skeleton.






Cut edges from leading edge for the counterweight rib skins will go.









Cut edges from leading edges for where the horizontal stabilizer attach brackts will mate with the rod end bearings on the elevator. Skins are cut 1/8 inch undersize on each end. Final cuts will be made after leading edge skin is rolled and pop riveted together.

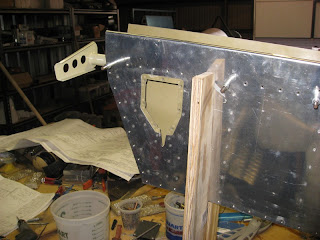

Left elevator is ready for final riveting. Am going to go home and review all plans to make sure I didnt overlook anything before riveting elevator skin to spar skeleton tomorrow.
